LAN 10/100 Base-T Transformers and BMS Signal Transformers
Bourns' LAN 10/100 Base-T transformers and BMS signal transformers provide a variety of options for user needs

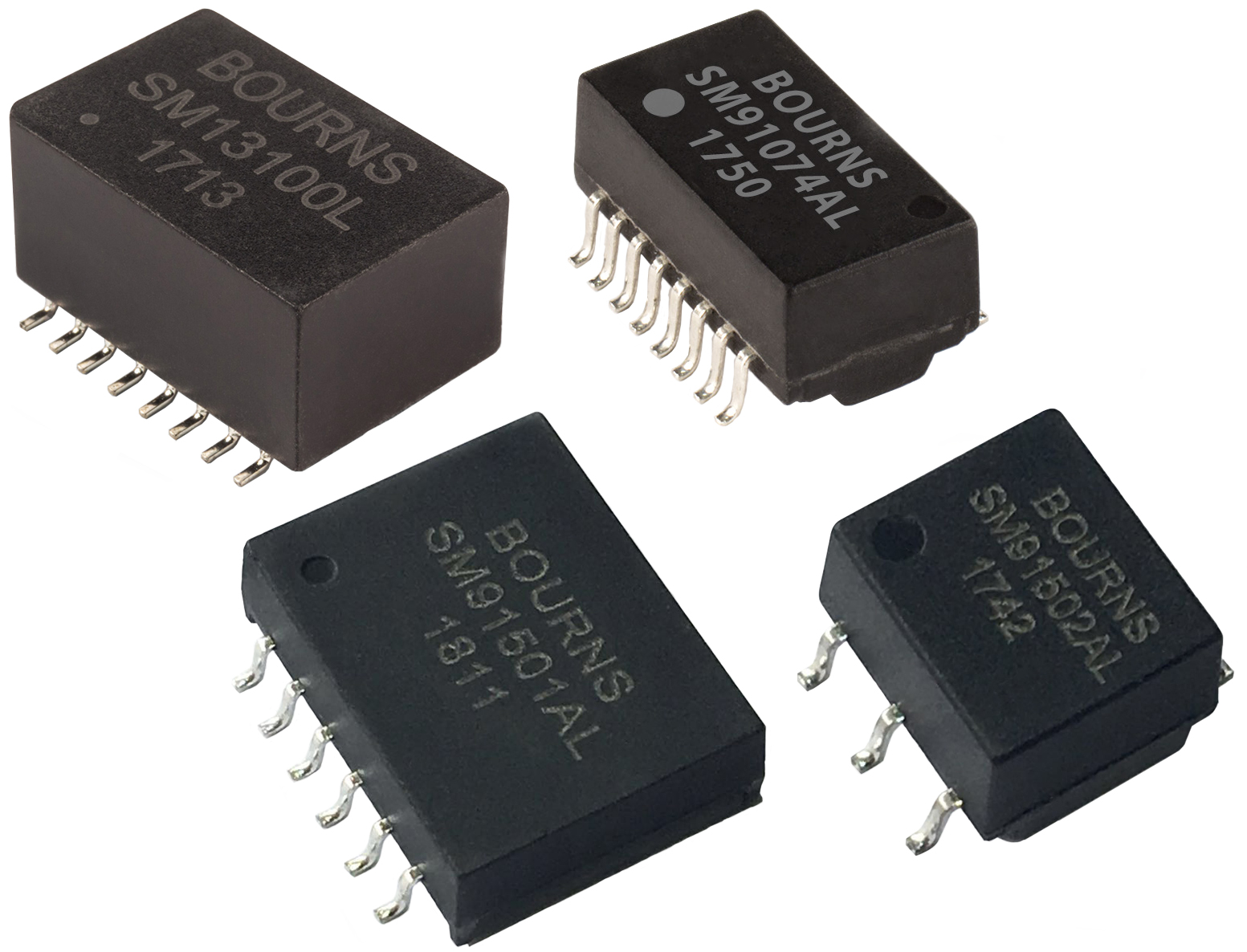

Bourns' model SM13100EL and SM91074AL single-port and LAN 10/100 Base-T / isolation transformer modules include common mode chokes for noise rejection in Ethernet applications.
The model SM13100EL is IEC 60601-1 and IEC 60950-1 compliant, UL Recognized, and is suitable for industrial Ethernet, Ethernet home appliances, and other market segments where higher insulation is required. It offers a 4000 VRMS isolation voltage and a 250 VRMS working voltage with an extended operating temperature range of -40°C to +85°C.
The model SM91074AL LAN transformer offers a 1500 VRMS isolation voltage and an extended operating temperature range of -40°C to +125°C.
Bourns BMS signal transformers are model SM91501AL and model SM91502AL. The model SM91501AL is a dual-channel isolation transformer module, and the model SM91502AL is a single-channel isolation transformer module. Both models include common mode chokes for noise rejection for BMS applications and hold reference designs with Analog Device's model LTC6804-1/6811 and NXP's MC33771/ 33772. These models are AEC-Q200 compliant.
The model SM91501AL offers a 1600 VDC working voltage while the model SM91502AL features a 1000 VDC working voltage. Both models provide a 4300 VDC hipot isolation voltage and an extended operating temperature range of -40°C to +125°C.
- IEC 60601-1 and IEC 60950 compliant
- Supplemental insulation
- 250 VRMS working voltage
- 4000 VRMS isolation voltage
- Expanded temperature range: -40°C to +85°C
- RoHS compliant
- Designed to meet IEEE 802.3u (100 Base-T) specifications
- Expanded temperature range: -40°C to +125°C
- RoHS compliant
- AEC-Q200 compliant
- 1600 VDC working voltage (model SM91501AL) or 1000 VDC working voltage (model SM91502AL)
- 4300 VDC Hi-Pot isolation voltage
- Supports serial daisy chain/IsoSPI communication
- Extended temperature range: -40°C to +125°C
- Holds reference designs with Analog Device's Model LTC6804-1/6811 and NXP's MC33771/ 33772
- RoHS compliant
- AEC-Q200 compliant
Model SM13100EL LAN 10/100 Base-T Transformers
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | SM13100EL | LAN 10/100 BASE T XFORMER 250VRM | 0 - Immediate | $1,555.70 | View Details |
Model SM91074AL LAN 10/100 Base-T Transformers
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | SM91074AL-E | 10/100 BASE T XFORMER AECQ +125 | 1091 - Immediate | $1,478.83 | View Details |
Model SM91501AL and SM91502AL BMS Signal Transformers
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | SM91501AL-E | BMS XFORMER 2-CH 1600V AECQ +125 | 2504 - Immediate | $1,352.78 | View Details |
|  | SM91502ALE | BMS XFORMER 1-CH 1000V AECQ +125 | 2958 - Immediate | $1,146.79 | View Details |
