            SLB125 Series AC-to-DC Internal Power Supplies
                    SL POWER / Advanced Energy's SLB125 series is designed for next-generation medical and industrial applications

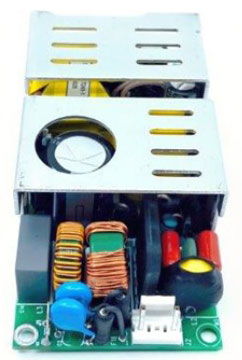

The SLB125 from SL POWER / Advanced Energy is an AC-to-DC internal power supply family designed for next-generation medical and industrial applications. One of the most important aspects of medical power supplies is their safety approval. These models are approved to EN/IEC/UL60601-1, 3rd edition with isolation levels and the latest EN/IEC/UL62368-1. This satisfies the 2xMOPP requirements. In addition, these products are designed to meet UL/EN/IEC60601-1-2, 4th edition for EMC.

The NGB250 models will operate at a universal input range of 80 V_AC to 264 V_AC over the wide temperature range of -20°C to +70°C, delivering full rated output power up to +50°C and applicable output power derating at +70°C.

Standard output voltages are from 12 V_DC to 56 V_DC in both Class I and Class II input options.

Features

Small size of 2” x 4” x 1.2”
UL/CSA/IEC/IEC60601-1, IEC62368-1 approved for 1U applications
2xMOPP isolation
85 W convection cooled
Meets 4th edition/heavy industrial EMC

125 W with 200 LFM airflow
-20°C to +70°C operating temperature range
Universal input 80 V_AC to 264 V_AC
3-year warranty

Applications

Ventilators
Patient monitors
Surgical equipment
Robotics
Analytical test equipment
MRI equipment

Medical imaging carts
Pump heaters and coolers
Water analysis
Dentist equipment
LED lighting
