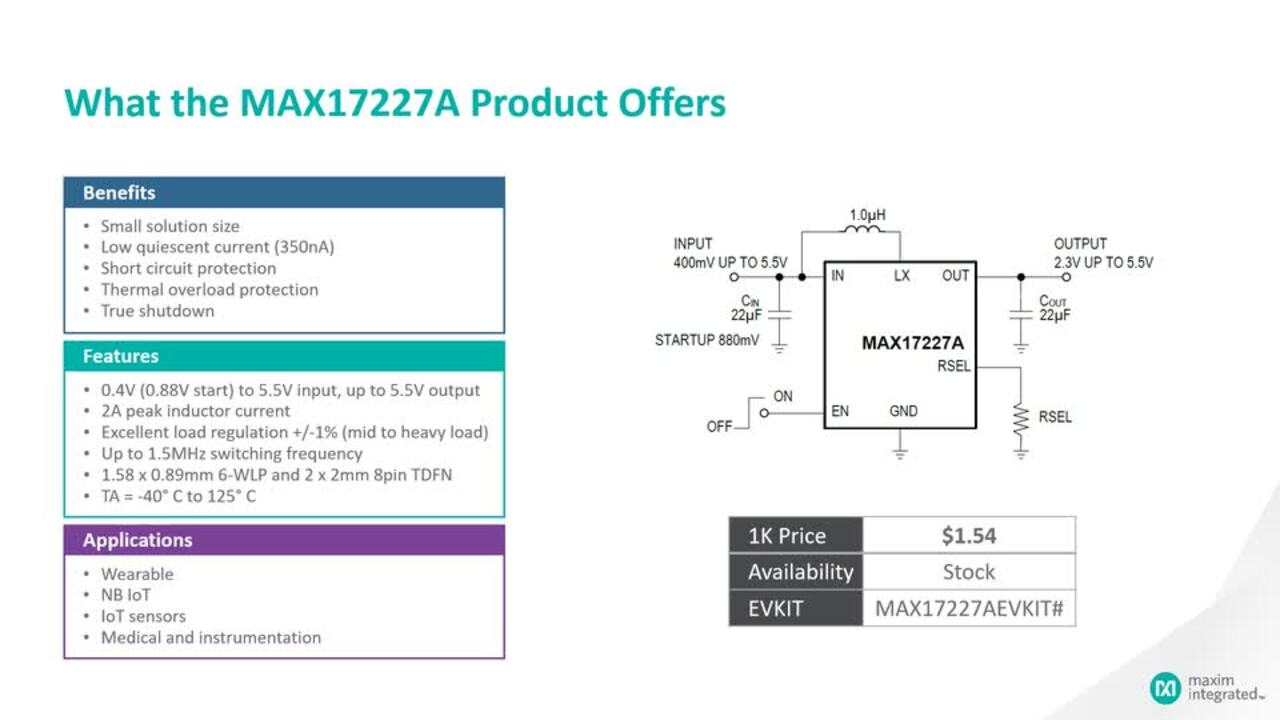

MAX17227A nanoPower Boost Converter
Analog Devices' MAX17227A ia a 400 mV to 5.5 V input, 2 A nanoPower boost converter with short-circuit protection and True Shutdown™
Analog Devices' MAX17227A is a nanoPower boost converter, capable of delivering a load up to 2 A peak inductor current and providing True Shutdown, cycle-by-cycle inductor current limit, short-circuit, and thermal protection. During shutdown, current drawn from the input pin is 1 nA. The MAX17227A offers ultra-low quiescent current, small total solution size, and high efficiency throughout the load and line range. These features make it ideal for battery-powered applications where extended battery life is required and high efficiency is necessary at all power levels.
Features
- 350 nA quiescent supply current from output
- Output short-circuit protection
- True shutdown mode: 1 nA shutdown current
- 96% peak efficiency, 90% or higher at 500 µA
Applications
- Industrial
- Emergency lighting
- IoT sensors
- Medical
- Clinical instrumentation
- Consumer
- Wi-Fi module
- Near-band IoT
- Wearable audio
MAX17227A nanoPower Boost Converter
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | MAX17227AANT+ | IC REG BOOST ADJ 2A 6WLP | 0 - Immediate | See Page for Pricing | View Details |
Eval Board
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | MAX17227AEVK#WLP | EVAL BOARD FOR MAX17227A | 1 - Immediate 6 - Factory Stock | $34,582.36 | View Details |
Published: 2021-05-17
